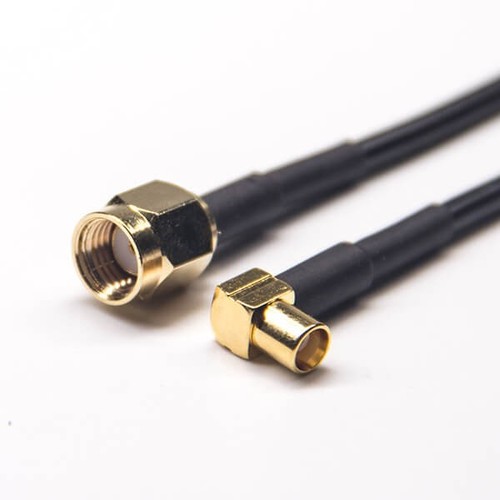

MCX Coax Cable Black RG316 Solder With Straight Bulkhead SMA Socket To MCX Plug

MCX Coax Cable Black RG316 Solder With Straight Bulkhead SMA Socket To MCX Plug Specification

Product Type
MCX Coax Cable

Number of Conductor
1

Conductor Diameter
0.5 mm (approx)

Conductor Number
Single core

Jelly Filled
No

Rip Cord
No

Insulation
PTFE

Installation Guideline
Suitable for internal/external RF signal connection

Jacket
Black

Pairs
Single Pair

Color
Black

No Of Pairs
1

No Of Core
1

Heat Proof
Yes

Application
RF, WLAN, GPS, Testing Instruments

Cable Type
RG316

Impedance
50 Ohms

Connector Finish
Gold plated

Flame Retardant
Yes

Connector 2
MCX Plug

Operating Temperature
-55C to +200C

Voltage Rating
Working Voltage up to 900V

Frequency Range
Up to 6 GHz

Dielectric Material
PTFE

Connector Gender
SMA Socket (Female), MCX Plug (Male)

Outer Diameter
2.5 mm (approx)

Shielding
Silver Plated Copper Braid

Cable Length
Custom as required (typically 15cm 1m)

Connector 1
Straight Bulkhead SMA Socket

MCX Coax Cable Black RG316 Solder With Straight Bulkhead SMA Socket To MCX Plug Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

MCX Coax Cable Black RG316 Solder With Straight Bulkhead SMA Socket To MCX Plug About

Description:RF Cable,Brown,SMAFemale,Bulkhead,Straight/180 MCX Plug,Angled/90 RG316

Cable Length 100mm;
RF Cable,Brown,SMA Female,Bulkhead,Straight/180 ,MCX Plug,Angled/90 RG316;
Used for Wireless communication and Wireless LAN;
Application include Mobile Phone, PC, GPS, Network Storage Equipment, Medical, Lighting, Remote Control, etc;
Pre-assemblied with different RF connectors for choice. Size and cable length can be customized;
From the OEM Original Factory, same quality with much better price.

Superior Signal Integrity

Benefit from outstanding signal clarity with a 50-ohm impedance, silver-plated copper braid shielding, and premium gold-plated connectors. Designed for high-frequency applications up to 6 GHz, this cable minimizes loss and interference, making it ideal for demanding RF, WLAN, GPS, and testing environments.

Custom Lengths for Flexible Installation

This cable is available in custom lengths typically ranging from 15 cm to 1 meter. The flexibility in cable sizing allows you to optimize installations for both internal and external RF signal connections, reducing unnecessary cable clutter and enhancing efficiency.

Built to Handle Extreme Conditions

Boasting a PTFE dielectric and flame-retardant black jacket, the RG316 cable reliably operates in temperatures from -55C to +200C. Its robust construction ensures excellent performance and long-term stability in challenging environments, making it a dependable choice for industrial and commercial applications.

FAQs of MCX Coax Cable Black RG316 Solder With Straight Bulkhead SMA Socket To MCX Plug:

Q: How is the MCX Coax Cable Black RG316 typically used?

A: This cable is commonly employed for internal and external RF signal connections, including applications in RF, WLAN, GPS, and testing instruments. Its precision-engineered connectors ensure seamless signal transfer in professional and laboratory settings.

Q: What are the main benefits of choosing the RG316 cable with SMA socket and MCX plug?

A: The RG316 cable offers low signal loss, robust shielding, high-temperature tolerance, and flame-retardant safety. Gold-plated connectors and PTFE insulation further enhance durability and performance, making it ideal for high-frequency, critical applications.

Q: When should I consider customizing the cable length?

A: Custom cable lengths, generally from 15 cm to 1 m, are useful for installations requiring precise cable management, reduced clutter, or tailored setups for specific instrumentation and devices. This helps optimize space and improve signal quality.

Q: Where can the MCX Coax Cable RG316 be installed?

A: Thanks to its heat-resistant, flame-retardant construction, the cable is suitable for both indoor and outdoor setups. Its ideal for use in environments demanding stable RF performance and durability, such as labs, industrial sites, and telecom networks.

Q: What is the process for installing the bulkhead SMA socket and MCX plug cable?

A: Installation is straightforward: mount the bulkhead SMA socket in a panel or chassis, then connect the MCX plug to your compatible device. Ensure proper tightening and avoid sharp bends to maintain optimal performance and cable life.

Q: What shielding and insulation does this cable offer?

A: The cable is shielded with a silver-plated copper braid, safeguarding against electromagnetic interference. Its PTFE dielectric and insulation provide exceptional resistance to heat and chemicals, ensuring consistent signal quality even in harsh environments.
