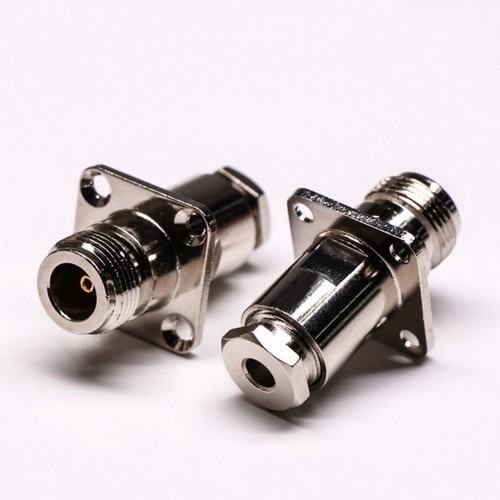

3AN-006-0080 N Type Connector

3AN-006-0080 N Type Connector Specification

Core Material
Copper

Dielectiric Strength
2000 V RMS min.

Weight
Approx. 75 grams

Locking Type
Threaded Coupling

Conductor Type
Solid/Stranded

Usage & Applications
RF Signal Transmission, Instrumentation, Antenna, Telecom, Wireless, Laboratory and Test set-ups

Core Number
Single Core

Conductor Shape
Round

Rated Temperature
-55C to +155C

Tensile Strength
Standard military-grade

Diameter
Approx. 29 mm

Operating Temperature
-55C to +155C

Install Type
Panel Mount, Cable Mount, Free end

Insulation
PTFE

Features
Durable, high-frequency performance, corrosion resistant, reliable signal transmission

Number of Conductor
Single

Cable Type
Coaxial

Impedance
50 Ohm

Product Type
RF N Type Connector

Length
Custom as per requirement

Voltage
1500 V RMS (at sea level)

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
RF Communication, Telecommunications, Testing Equipment, Broadcast, Antenna connections

Conductor Material
Copper

Jacket Material
Nickel-plated brass

Storage Temperature
-55C to +155C

Connector Color
Silver

Shield Material
Brass/Nickel

Jacket Color
Metallic/Silver

Dimension (L*W*H)
Approximately 90 x 35 x 35 mm

Color
Silver

Material
Brass, Nickel-plated

Size
Standard N Type (up to 7/16 diameter)

Center Contact Retention
>2 lbs

Mating Cycle Durability
>500 mating cycles

Mounting Type
Panel Mount / Cable End

Ingress Protection
IP67 (when mated)

VSWR
1.3:1 max. (DC-11 GHz)

Weatherproof
Yes

Frequency Range
DC to 11 GHz

Contact Plating
Gold Plated

RoHS Compliance
Yes

3AN-006-0080 N Type Connector Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

About 3AN-006-0080 N Type Connector

Introducing the sizzling 3AN-006-0080 N Type Connector, an exclusive, must-have solution for demanding RF and telecommunication environments. Boasting a top-tier frequency range from DC to 11 GHz and an invincible VSWR of 1.3:1, this connector ensures unmatchable signal reliability. With gold-plated contacts for superior conductivity, weatherproof IP67 protection, and exceptional durability (over 500 mating cycles), it stands out in both performance and longevity. RoHS compliance, corrosion resistance, and custom sizing make it the connector of choice for broadcast, antenna, test setups, and more. Experience unbeatable performance with this robust, military-grade marvel.

Invincible Performance Across Multiple Applications

The 3AN-006-0080 N Type Connector offers an unmatchable advantage in areas such as RF communication, telecommunications, testing equipment, and broadcasting. Designed for reliability and durability, it is used for robust RF signal transmission and performs flawlessly even in demanding laboratory and wireless setups. Its military-grade tensile strength and weatherproof protection ensure stable operation in both indoor and outdoor environments, making it ideal for securing network integrity in any professional application.

Smooth Payment, Swift Delivery, and Easy Outlay

Experience hassle-free goods transport and prompt handover of the 3AN-006-0080 N Type Connector. Payment terms are flexible, tailored for seamless transactions within the main domestic market of India. With an efficient outlay process, delivery timeframes are minimized, ensuring that your requirements are met swiftly and reliably. Customers benefit from secure packaging and expedited shipping, guaranteeing the product arrives safely and ready for immediate installation.

FAQs of 3AN-006-0080 N Type Connector:

Q: How does the 3AN-006-0080 N Type Connector ensure reliable and secure signal transmission?

A: This connector features gold-plated contacts, IP67 weatherproof rating, and a robust brass and nickel construction, providing excellent conductivity, corrosion resistance, and reliable signal integrity even in demanding environments.

Q: What applications are best suited for the 3AN-006-0080 N Type Connector?

A: It is ideally used in RF communication, telecommunication systems, testing equipment, broadcast setups, antenna connections, and laboratory test environments requiring stable high-frequency performance.

Q: When should I use this N Type Connector over other RF connectors?

A: Choose the 3AN-006-0080 for applications requiring top-tier durability, frequency range up to 11 GHz, weatherproof sealing, and over 500 mating cycles. Its military-grade build and reliability outperform standard connectors in rigorous or critical scenarios.

Q: Where is this connector manufactured and supplied from?

A: The 3AN-006-0080 N Type Connector is manufactured, exported, and supplied by a top-tier provider in India, serving both domestic and international markets.

Q: What is the process for ordering and receiving the connector?

A: Simply place your order with the supplier, benefit from flexible payment terms, and expect secure goods transport. Swift handover ensures prompt delivery to your location, ready for immediate deployment.

Q: What are the key benefits of its gold-plated contacts and PTFE insulation?

A: Gold-plated contacts enhance conductivity and minimize signal loss, while PTFE insulation offers excellent thermal stability, electrical insulation, and durability for long-lasting performance.
