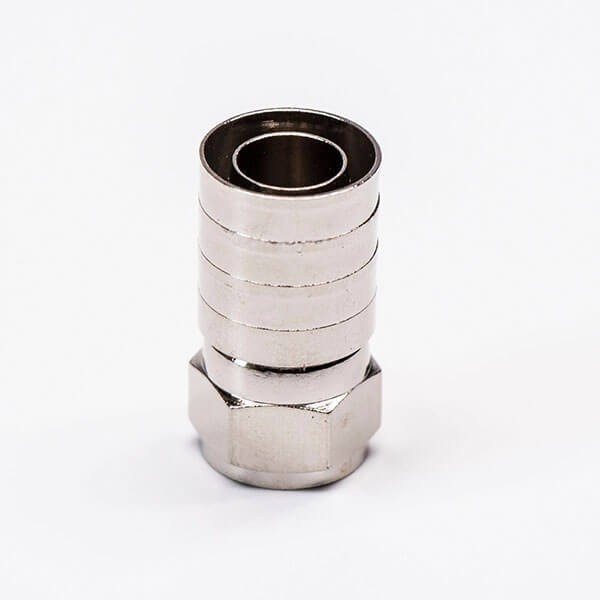

RG11 F Connector Male Straight Brass

RG11 F Connector Male Straight Brass Specification

Weight
Approx. 12 g

Core Material
Brass

Conductor Shape
Round

Features
High conductivity, corrosion resistant, easy installation, robust design, secure signal transmission, nickel-plated finish

Dielectiric Strength
2.5 KV rms, 1 min

Conductor Type
Single

Number of Conductor
1

Diameter
Approx. 11 mm

Operating Temperature
-40C to +70C

Impedance
75 Ohm

Usage & Applications
TV, satellite, CCTV installations, cable assemblies

Install Type
Compression/Fit-on

Locking Type
Threaded Lock

Cable Type
RG11 coaxial

Core Number
1

Rated Temperature
-40C to +70C

Tensile Strength
>75N

Insulation
PE

Product Type
RG11 F-Type Male Coaxial Connector

Length
Custom, typically 30 mm - 45 mm

Voltage
Rated for up to 30V AC/DC

Insulation Material
PE (Polyethylene)

Application
Coaxial cable termination for CATV, satellite TV, HDTV, CCTV, RF signal transmission

Conductor Material
Brass

Jacket Material
N/A (applies to cable not connector)

Storage Temperature
-40C to +85C

Connector Color
Silver/Nickel

Shield Material
Brass with Nickel Plating

Jacket Color
N/A (applies to cable not connector)

Dimension (L*W*H)
Approx. 40mm (L) x 11mm (Diameter)

Color
Silver

Material
Brass, Nickel-plated

Size
Standard for RG11 cable

Withstanding Voltage
AC 500V/1min

Connector Gender
Male

Insertion Loss
0.3 dB @ 1 GHz

Environmental Protection
UV and corrosion resistant

Pin Plating
Gold plated (optional)

RoHS Compliance
Yes

Finish Type
Nickel Plated

Frequency Range
Up to 3 GHz

Supported Cable
RG11 Coaxial Cable

Contact Resistance
<10 m

Connector Style
Straight

Mounting Type
Cable mount, free hanging

RG11 F Connector Male Straight Brass Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

About RG11 F Connector Male Straight Brass

Techinial Datasheet:

Electrical Characteristics

Impedance75 ohm
Frequency Range: 0~3Ghz
VSWR: Straight type 1.2max / R/A type 1.3max
Withstanding Voltage: 500 V rms
Working Voltage: 170 V rms
Center Contact Resistance 10 m
Outer Contact Resistance 5 m
Insultation Resistance 1000 m
RF Leakage -100dB min @1GHz

Mechanical Characteristics

Coupling: 3/8-32 thread
Cable Retention: 20 lbs min.
Durability(mating) 500 cycles

Environmental Characteristics

Temprature Range: -40C ~ +60C

Material:

Part	Material	Finish
SHELL	Zinc	NI:80-120u"

Reliable Signal Transmission for Demanding Installations

Designed for RG11 coaxial cables, this F Connector Male Straight delivers secure signal transmission and minimal insertion loss, making it suitable for CATV, satellite TV, CCTV, and HDTV systems. Its robust brass core, nickel plating, and high conductivity ensure long-lasting performance even in harsh environmental conditions.

Engineered for Durability and Ease of Installation

With a rugged brass body, UV and corrosion-resistant finish, and threaded locking mechanism, this connector provides strength and stability in both residential and commercial applications. Compression or fit-on installation makes setup straightforward, saving you time and ensuring a dependable connection.

FAQs of RG11 F Connector Male Straight Brass:

Q: How do I install the RG11 F Connector Male Straight on a coaxial cable?

A: The RG11 F Connector Male Straight can be installed using standard compression or fit-on techniques, suitable for RG11 coaxial cables. Strip the cable, insert the connector, and compress with a compatible tool until securely fastened. The threaded locking type ensures a stable, vibration-resistant connection.

Q: What applications are ideal for using this F-type connector?

A: This connector is designed for a range of applications including CATV, satellite television, HDTV, CCTV installations, and general RF signal transmission. Its robust build and high conductivity make it suitable for both indoor and outdoor environments.

Q: When should I choose this connector over other types?

A: Select the RG11 F Connector Male Straight when you require minimal signal loss ( 0.3 dB @ 1 GHz), broad frequency support (up to 3 GHz), and enhanced durability for RG11 coaxial cable installations, particularly in environments subject to UV exposure or corrosion.

Q: Where is this connector typically used?

A: The RG11 F Connector Male Straight is popular in both residential and commercial cable assemblies throughout India, especially in TV, satellite, and CCTV system installations. Exporters, manufacturers, suppliers, and wholesalers across the region rely on its reliability.

Q: What are the key benefits of the nickel plating and optional gold pin plating?

A: Nickel plating provides excellent corrosion resistance and durability, especially against environmental factors such as UV and moisture. Optional gold plating on the pin further enhances conductivity and signal integrity, ensuring high-performance transmission.

Q: Is the connector compliant with international safety and environmental standards?

A: Yes, the RG11 F Connector Male Straight is RoHS compliant, ensuring it meets restrictive standards for hazardous substances and is safe for use in all compliant export and manufacturing operations.
