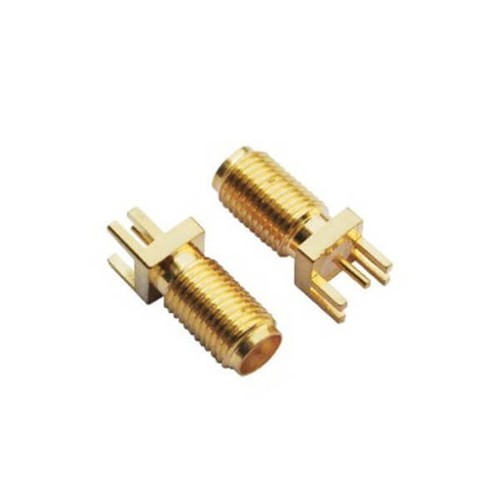

3AN-007-0006 SMA Connector Female Cirmp Type Cable Blukhead Panel Mount

3AN-007-0006 SMA Connector Female Cirmp Type Cable Blukhead Panel Mount Specification

Weight
Approx. 4 grams

Diameter
Outer body diameter: 6.35 mm (approx.)

Usage & Applications
RF, Microwave, LAN/WLAN Devices, Communication and Test System

Conductor Type
Single Core

Number of Conductor
Single

Impedance
50 Ohm

Core Number
1

Install Type
Panel/Bulkhead Mount

Insulation
PTFE

Cable Type
Compatible with RG-58, RG-174, RG-316 and similar RF cables

Tensile Strength
Meets SMA MIL-STD-348A standards

Core Material
Brass, Gold Plated

Dielectiric Strength
1500 V RMS (sea level)

Features
High-frequency performance, panel mount design, reliable connectivity, gold-plated contacts, crimp type for secure cable termination

Rated Temperature
-65C to +165C

Locking Type
Threaded Coupling

Conductor Shape
Round

Operating Temperature
-65C to +165C

Product Type
SMA Female Crimp-Type Bulkhead Panel Mount Connector

Length
Customizable as per requirement

Voltage
335 V (RMS) Max

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
RF signal transmission, communication equipment, test and measurement, antennas

Conductor Material
Brass, Gold Plated

Jacket Material
Not applicable (connector only)

Storage Temperature
-65C to +165C

Connector Color
Gold

Shield Material
Brass, Nickel or Gold Plated

Dimension (L*W*H)
Length: 18 mm, Mounting thread: M6 x 0.75, Panel thickness: Up to 6 mm

Material
Brass with Gold Plating, PTFE Insulator

Color
Gold

Size
SMA standard; Length: 18 mm, Body Dia: approx. 6 mm

Mounting Style
Bulkhead/Panel Mount

Thread Size
M6 x 0.75 mm

Frequency Range
DC to 18 GHz

Insulation Resistance
>5000 M

VSWR
1.3 (DC - 12.4 GHz)

Coupling Mechanism
Threaded

Contact Plating
Gold (for high conductivity and corrosion resistance)

RoHS Compliance
Yes

Crimp Tool Required
Yes, specific to cable type

Body Plating
Nickel or Gold (as per variant)

Connector Gender
Female (Jack)

Mating Cycles
>500 cycles

Contact Resistance
Center Contact 3 m; Outer Contact 2 m

Panel Hole Size
Approx. 6 mm

3AN-007-0006 SMA Connector Female Cirmp Type Cable Blukhead Panel Mount Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

About 3AN-007-0006 SMA Connector Female Cirmp Type Cable Blukhead Panel Mount

Introducing the New Release 3AN-007-0006 SMA Connector Female Crimp Type Cable Bulkhead Panel Mount, a prime choice for superb high-frequency RF applications. Engineered with top-drawer gold-plated contacts for enhanced conductivity and corrosion resistance, this connector guarantees reliable connectivity and superb signal integrity. Designed for more than 500 mating cycles, its perfect for test systems, communication equipment, and antennas. Limited stock availableredeem your opportunity to elevate your connection solutions. Customizable length, RoHS compliance, and versatile panel mount design make this SMA connector ideal for professional use. Secure your supply promptly!
