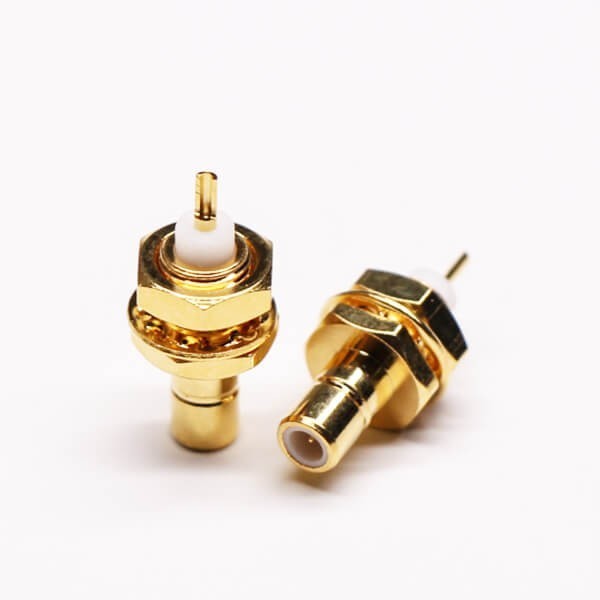

SMB Straight Female Connectors Solder For Cable Extended PTFE

SMB Straight Female Connectors Solder For Cable Extended PTFE Specification

Core Number
Single core

Dielectiric Strength
1000V RMS min.

Rated Temperature
-65C to +165C

Conductor Type
Solid

Number of Conductor
1

Impedance
50 Ohms

Core Material
Brass (Gold Plated)

Conductor Shape
Round

Diameter
7 mm (outer diameter)

Features
Compact design, reliable connection, easy to install, solder type, extended PTFE insulation, high-frequency performance

Insulation
PTFE Extended

Locking Type
Snap-on

Weight
Approx. 5 grams

Cable Type
Compatible with RG-174/U, RG-316/U, and similar cables

Operating Temperature
-65C to +165C

Install Type
Solder for cable

Usage & Applications
RF cable assemblies, communication equipment, test instruments

Product Type
SMB Straight Female Connector, Solder Type, Extended PTFE

Length
Customizable as per cable requirement

Voltage
Up to 335V RMS

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
RF applications, telecommunications, instrumentation, antennas

Conductor Material
Brass/Phosphor Bronze with gold plating

Jacket Material
Not Applicable (Connector Only)

Storage Temperature
-40C to +85C

Connector Color
Gold

Shield Material
Brass with gold plating

Jacket Color
Not Applicable (Connector Only)

Dimension (L*W*H)
Approx. 25 mm (length) x 7 mm (diameter)

Material
Brass body, PTFE insulator, gold plating

Color
Gold

Size
Standard SMB, Female

Frequency Range
DC to 4 GHz

Applicable Standards
MIL-C-39012

Insulation Resistance
5000 M

Mounting Style
Free Hanging (In-Line)

VSWR
1.3

Gender
Female

Compatible Cables
RG-174, RG-188, RG-316

Contact Resistance
Center Contact 6 m; Outer Contact 2 m

Body Finish
Gold plated over nickel

Contact Plating
Gold

Environmental Compliance
Meets IEC 60068

RoHS Compliance
Yes

Durability
500 Mating cycles min.

SMB Straight Female Connectors Solder For Cable Extended PTFE Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

About SMB Straight Female Connectors Solder For Cable Extended PTFE

Description:SMB Connector,Straight/180,Female/Jack,Extended PTFE,Solder Type,Coaxial Cable

Features:

SMB Connector,Straight/180,Female/Jack, Extended PTFE,Solder Type,Coaxial Cable;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
From the OEM Original Factory, same quality with much better price.

Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Medical: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems,Instrumentation

High-Frequency, Reliable Connections

With a frequency range from DC to 4 GHz and a VSWR of 1.3, these SMB connectors provide stable, low-loss signals crucial for high-performance RF systems. Their gold-plated contacts ensure reduced contact resistance and enhanced durability, even after hundreds of mating cycles.

User-Friendly and Versatile Installation

Designed for easy soldering and free-hanging (in-line) installation, these connectors adapt to a wide range of cable types including RG-174, RG-188, and RG-316. Their compact build and snap-on locking mechanism simplify integration into test instruments, antennas, and communication networks.

Rugged, Standards-Compliant Construction

Manufactured to MIL-C-39012 and compliant with IEC 60068, these connectors excel in demanding environments. The extended PTFE insulation and brass body with gold plating provide durability, corrosion resistance, and long-lasting performance for professional RF applications.

FAQs of SMB Straight Female Connectors Solder For Cable Extended PTFE:

Q: How do I install the SMB Straight Female Connector with solder-type assembly?

A: To install, strip the compatible cable (e.g., RG-174, RG-188, RG-316) and solder the center conductor to the connectors pin. Attach the shield to the body, ensuring no insulation intrusion, then secure the snap-on connector for a stable, reliable fit.

Q: What makes the extended PTFE insulation beneficial in these connectors?

A: The extended PTFE insulation provides high dielectric strength (up to 1000V RMS), excellent thermal resistance (-65C to +165C), and reliable electrical performance across a wide temperature range, ideal for demanding RF and instrumentation applications.

Q: When should I use these SMB female connectors in my projects?

A: These connectors are suited for RF cable assemblies, telecommunications, antennas, test instruments, and any application demanding reliable, high-frequency connections up to 4 GHz with minimal signal loss and robust durability.

Q: Where can I use these connectors for optimal performance?

A: Optimal use is in RF applications, telecommunications, test and measurement setups, and antenna connections where you require compact design, snap-on locking, and stable signal transmission with minimal VSWR and contact resistance.

Q: What standards and compliances do these connectors meet?

A: They are manufactured to meet MIL-C-39012 for military-grade quality, IEC 60068 for environmental standards, and RoHS compliance for environmental responsibility. This ensures reliability and safety in critical applications.

Q: How does the gold plating and brass construction benefit the connector?

A: Gold plating over a brass body greatly enhances corrosion resistance, conductivity, and mating durability, ensuring reliable electrical connections over at least 500 mating cycles, which is vital for long-term performance and maintenance.
