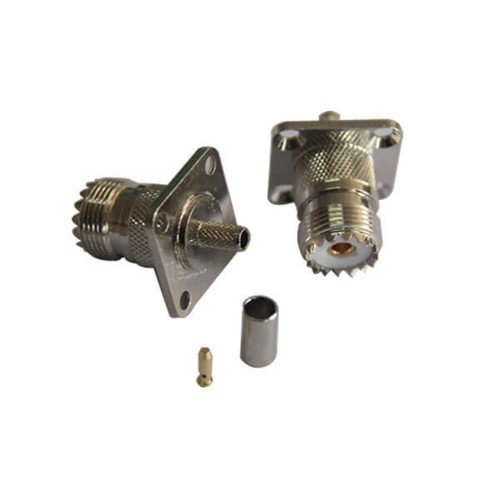

3AN-009-0048 UHF Connector Jack Straight Clamp Type For Flange Mount

3AN-009-0048 UHF Connector Jack Straight Clamp Type For Flange Mount Specification

Operating Temperature
-65C to +165C

Core Material
Brass/Phosphor Bronze

Features
High frequency performance, firm connection, suitable for RF applications, easy flange mount installation, corrosion resistant

Impedance
~50 Ohm (nominal)

Locking Type
Bayonet (threaded coupling)

Diameter
Panel Cutout: ~16mm

Usage & Applications
Panel mount, Flange mount, RF equipment connection, Ham radio, Antennas

Conductor Type
Solid pin

Core Number
Single core

Number of Conductor
Single

Conductor Shape
Round

Cable Type
Clamp type for RG-58/U, RG-59/U, RG-8/U, etc.

Weight
Approx. 26g

Rated Temperature
-65C to +165C

Insulation
PTFE

Install Type
Flange Mount with 4 mounting holes

Dielectiric Strength
1000V rms min

Product Type
UHF Jack (SO239) Straight Clamp Type for Flange Mount

Length
Standard

Voltage
500V rms max (at sea level)

Insulation Material
PTFE

Application
RF connections, communication equipment, radio transmitters, instrumentation

Conductor Material
Brass/Phosphor Bronze

Jacket Material
N/A (connector only)

Storage Temperature
-65C to +165C

Connector Color
Silver/Nickel plated

Shield Material
Brass nickel-plated

Jacket Color
Silver/White

Dimension (L*W*H)
Approx. 28.7mm x 25.5mm x 23mm (without cable)

Color
Silver/White

Material
Brass body, PTFE insulator, Nickel plating

Size
Standard (see dimension)

Flange Shape
Square with four mounting holes

RoHS Compliance
Yes

Contact Resistance
Center Contact 3m; Outer Contact 2m

Contact Plating
Silver

Plating
Nickel plated over brass

Frequency Range
DC to 300 MHz

Connector Gender
Female (jack)

Mating Cycles
500

Coupling Mechanism
Threaded (screw type)

Mounting Hole Diameter
~3.4mm (each of 4 flange holes)

Insulation Resistance
>5000 M

3AN-009-0048 UHF Connector Jack Straight Clamp Type For Flange Mount Trade Information

Minimum Order Quantity
5 Pieces

Main Domestic Market
All India

3AN-009-0048 UHF Connector Jack Straight Clamp Type For Flange Mount About

Description:UHF Connector, Female, 4 Hole Flange,Straight/180, Panel Mount,UHF-SL16-KF5

Features:

UHF Connector, Female, 4 Hole Flange, Straight/180, Panel Mount,UHF-SL16-KF5;
Designed for low frequency systems from 0.6-300MHz;
Threaded coupling mechanism is easy for assembly with high durability;
From the OEM Original Factory, same quality with much better price.

Appliance:

Antennas, Military, Public Address Systems and Low-frequency applications

High Performance for RF Applications

Designed for precise RF connections, the 3AN-009-0048 UHF connector jack delivers reliable high-frequency performance with a nominal impedance of ~50 Ohm. Its solid brass and phosphor bronze conductors, silver-plated contacts, and PTFE insulation ensure low resistance and high insulationeven under demanding operating conditions. The threaded flange mount installation is straightforward, ensuring a firm connection with minimal signal loss.

Durability and Corrosion Resistance

Boasting a robust brass body and nickel plating, this connector provides strong corrosion resistance for long-term, stable operation. With silver-plated contacts and engineering for 500 mating cycles, it is suitable for frequent installation and usage. Its standard dimensions and four-hole flange make it easy to integrate into various panel and system designs.

Versatile Mounting and Cable Compatibility

The clamp-type flange mount suits panel installations with a ~16mm cutout. This connector supports popular cable types like RG-58/U, RG-59/U, and RG-8/U, offering versatility for communication, radio, and antenna setups. The square flange with four mounting holes allows secure and reliable attachmenteven in vibration-prone environmentsensuring consistent performance.

FAQs of 3AN-009-0048 UHF Connector Jack Straight Clamp Type For Flange Mount:

Q: How do I install the 3AN-009-0048 UHF connector jack using the flange mount?

A: To install, align the connectors square flange with your panels pre-drilled cutout (~16mm diameter) and secure it using the four mounting holes (each approximately 3.4mm in diameter). Use appropriate screws for a firm, vibration-resistant attachment.

Q: What types of cables are compatible with this connector?

A: The clamp-type design accommodates standard coaxial cables such as RG-58/U, RG-59/U, and RG-8/U, making it suitable for various RF, antenna, and communication setups.

Q: Where can this connector be used for optimal performance?

A: The 3AN-009-0048 is ideal for RF equipment, radio transmitters, communication devices, panel-mount systems, ham radios, and antenna connections where precision and reliability are critical.

Q: What benefits does the nickel-plated brass body offer?

A: Nickel plating over brass ensures robust corrosion resistance and durability, maintaining electrical conductivity and performance over repeated use and in challenging environmental conditions.

Q: When should I consider using this connector in my projects?

A: This connector is recommended when you need secure, high-frequency RF connections, easy panel mounting, and support for standard coaxial cablesespecially in professional communication or instrumentation environments.

Q: What process ensures reliable electrical performance in this connector?

A: High-quality brass and phosphor bronze conductors, PTFE insulation, silver-plated contacts, and a threaded coupling mechanism collectively provide low contact resistance, high insulation resistance, and consistent impedance throughout the connector lifecycle.

Q: Is the 3AN-009-0048 compliant with environmental standards?

A: Yes, this connector is RoHS compliant, meeting international safety and environmental standards for restricted substances in electronic components.
